YA 224

YA 224

S46DR1S

Damp tech: STX 46
Length: 327 mm
Oil: Öhlins 1309
Spring: 01096-36
Spring Rate: 105 N/mm
Stroke: 71.5 mm
TÜV: Yes

RM5,302.00

Description

With our proven monotube design, the STX 46 shock absorbers set the standard for performance, quality, and durability. A mainstay of our Street Performance line, the Öhlins STX 46 Street is a major performance upgrade for your bike.

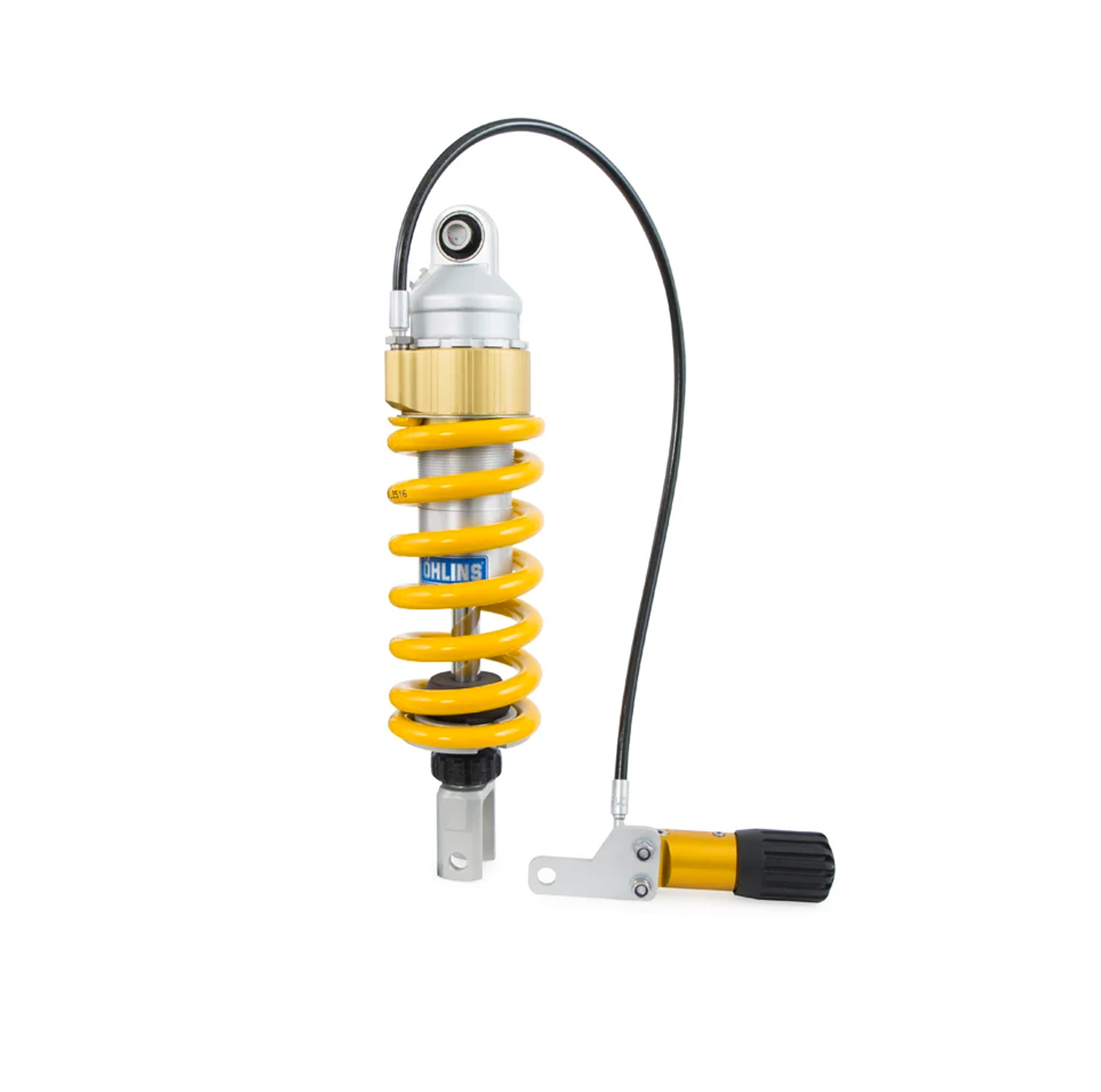

The STX 46 Street shock absorber for the Yamaha XSR 900 features a large 46 mm piston and an internal reservoir in the main body of the shock.



With adjustable rebound, you can adapt the damping performance to your riding style. The shock also features a hose-mounted hydraulic preload adjuster, which can be used to compensate for changes in rider and cargo weight. This combination of features makes the STX46 Street an excellent option for riders seeking improved traction and comfort.



Features

Adjustable rebound damping
Monotube shock with internal reservoir
High-pressure nitrogen gas-charged
STX single-tube design
46 mm piston diameter
Hose-mounted hydraulic spring preload adjuster
Adjustable preload with billet tool
Multiple spring rates available to accommodate a wide range of riders
Top-level comfort, rideability, and performance
Hard-anodized precision CNC-machined components
Low-friction shaft and seal head design
Fully serviceable and repairable
